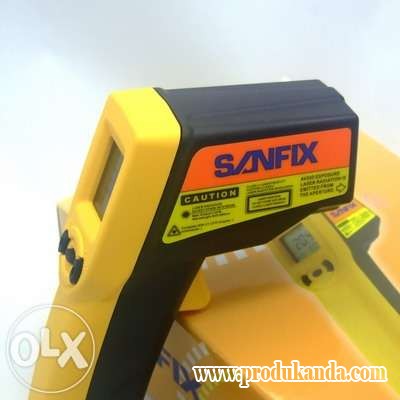

SANFIX IT-1000 Dual Lasers Infrared Thermometer
- Wide Measurement Range
- High DS Ratio
- Dual Lasers
Specifications
|
Model No. |
IT-1000 |
IT-1500 |
|
Description |
IRT + Dual Lasers + Thermocouple socket (E) with LED Flashlight |
|
|
Measurement Range |
-60 to + 1000°C (-76 to 1832°F) |
-60 to +1500°C (-76 to +2732°F) |
|
Operation Range |
0 - 50°C (32 - 122°F) |
|
|
Accuracy (Tobj=15-35°C,Tamb=25°C) |
±1.0°C (1.8°F) |
|
|
Full Range Accuracy (Tamb=23±3°C) |
Tobj = -33 - 1000°C: ±2% of reading or 2°C (4°F) whichever is greater |
Tobj = -33 - 1500°C: ±2% of reading or 2°C (4°F) whichever is greater |
|
Resolution (-9.9 – 199.9°C) |
0.1°C/0.1°F |
|
|
Response Time (90%) |
1 sec |
|
|
Distanc e : Spot |
50 : 1 |
|
|
Emissivity Range |
0.95 default adjustable 0.1 to 1 step .01 |
|
|
Dimensions |
47.0 x 197.0 x 203.3 mm (1.8 x 7.7 x 8.0 inch) |
|
|
Weight (Including Batteries) |
386.1 grams (13.62 oz) |
|
|
Thermocouple Probe |
Small Socket, K type, 12 minutes auto Power Off |
|
|
Measurement Range |
-64 to +1400°C (-83.2 to +2552°F) |
|
|
Probe Accuracy |
±1% of reading or 1°C (1.8°F) whichever is greater (Test under Tamb=23±6°C) |
|
|
Battery Life |
Typ. 180, min 140 hours continuous use (Alkaline, without Laser and Back Light.) |
|
|
Battery Type |
AAA x 2 |
|
|
Mode |
Max, Min, Dif, Ave, Lock, Hi/Low Temp Alarm |
|
